Why Cooling Tower Fill Gets Damaged: Temperature, Chemicals, Fouling and Mechanical Causes

When a cooling tower starts losing performance, the fan or pump is often blamed first. But in many industrial cooling towers, the real problem is inside the tower: the Cooling Tower Fill has become damaged, deformed, blocked, or heavily fouled.

Cooling tower fill operates continuously in warm water, airflow, chemicals, minerals, and microorganisms. In Southeast Asia, where temperatures and humidity can be high, these conditions can make fill damage happen faster. Understanding the cause before replacing the media can help prevent the same problem from happening again.

What Causes Cooling Tower Fill Damage?

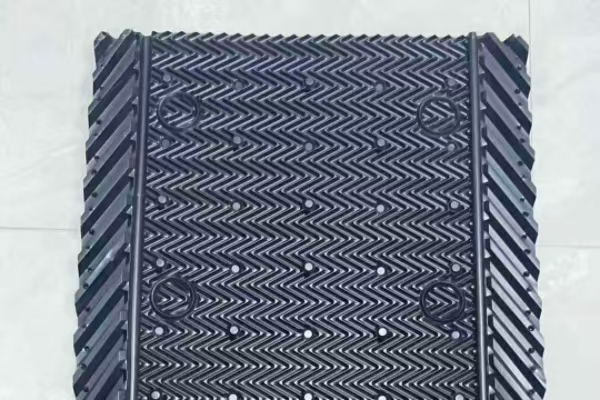

Cooling Tower Fill, also known as Cooling Tower Media or tower fill, increases the contact area between air and water. In a film-fill system, water spreads over corrugated sheets while air passes through the channels.

This design provides efficient heat transfer, but the narrow channels can become sensitive to fouling, scaling, and poor water quality. The main causes of fill damage usually include temperature, chemicals, fouling, and mechanical problems.

1. Excessive Operating Temperature

High temperature is one of the most common reasons plastic fill becomes deformed or loses its original shape. If the actual water temperature is higher than the fill's recommended operating range, the sheets may soften, warp, or collapse over time.

For conventional applications, PVC cooling tower fill is widely used because of its good balance of cost and performance. For some higher-temperature or more demanding industrial applications, PP cooling tower fill may be a better option.

Before choosing replacement media, check both the normal and peak operating temperatures rather than selecting the material based only on price.

2. Chemical Exposure

Cooling tower water normally contains treatment chemicals such as biocides, corrosion inhibitors, and scale-control chemicals. Proper water treatment is essential, but excessive chemical concentration or incorrect dosing can affect fill service life.

If the fill becomes brittle, discolored, or deteriorates much earlier than expected, review the water treatment records. pH, TDS, conductivity, chemical concentration, and water temperature should all be considered.

3. Fouling and Scaling

Fouling is a major problem for Film Fill. Dust, algae, biological deposits, minerals, and suspended solids can gradually block the channels inside the fill.

As fouling increases, airflow becomes more restricted and water distribution becomes less uniform. The cooling tower may then show higher outlet-water temperature and reduced cooling capacity.

For relatively clean water, film fill can provide excellent heat transfer. For applications with heavy suspended solids or high fouling potential, a more open structure such as Splash Grid Fill may be worth considering.

Mechanical Damage During Installation and Cleaning

Not all fill damage is caused by operating conditions. Thin film-fill sheets can also be damaged during installation or maintenance.

• Walking directly on the fill
• Dropping tools or equipment
• Using excessive water pressure during cleaning
• Damaging the fill support structure
• Incorrect installation or poor alignment

Once the corrugated structure is damaged, airflow and water distribution can change. If large areas of fill have collapsed or cracked, replacement is usually more practical than trying to repair individual sheets.

Counterflow and Crossflow Film Fill

Counterflow Film Fill

In a counterflow tower, water flows downward while air moves upward through the fill. If the fill becomes blocked, airflow resistance can increase and cooling performance can fall.

For replacement projects, check the existing fill height, width, length, flute direction, and support arrangement before ordering. Our Counterflow Film Fill is designed for counterflow cooling tower applications.

Crossflow Film Fill

Crossflow towers use a different airflow arrangement, with air entering horizontally while water moves downward. Therefore, the fill structure and installation method need to match the original tower design.

For crossflow applications, see our Crossflow Film Fill product information.

How to Know When Cooling Tower Fill Needs Replacement

A damaged fill does not always fail suddenly. There are several warning signs engineers can watch for:

• Cooling water temperature is gradually increasing.
• Fill channels are visibly blocked.
• Sheets are cracked, brittle, or deformed.
• Heavy scaling or biological deposits are present.
• Air pressure drop increases.
• Water distribution becomes uneven.

Before replacing the fill, also inspect the water distribution system, fan, air inlet louvers, and drift eliminators. Problems elsewhere in the tower can sometimes look like a fill problem.

How to Prevent Cooling Tower Fill Damage

Good maintenance can significantly extend the service life of Cooling Fill.

• Maintain proper water treatment.
• Monitor operating temperature.
• Control TDS and suspended solids.
• Inspect the fill regularly.
• Clean fouled areas before deposits become severe.
• Avoid excessive pressure during cleaning.
• Check water distribution and airflow.

It is also worth inspecting other tower components during a fill replacement. Damaged Cooling Tower Air Inlet Louvers can affect airflow, while damaged Drift Eliminators can increase water carryover.

Final Thoughts

Cooling tower fill damage is usually related to the operating environment rather than the fill alone. High temperature, chemical exposure, fouling, scaling, and mechanical damage can all shorten service life.

Before buying new Cooling Tower Fill, identify why the old media failed. Check the tower type, water quality, operating temperature, fill dimensions, and maintenance conditions. This makes it much easier to choose between Film Fill, Splash Fill, PVC Cooling Tower Fill, and PP Cooling Tower Fill.

The right fill is not simply the cheapest option. It should match the cooling tower and the conditions in which it actually operates.
